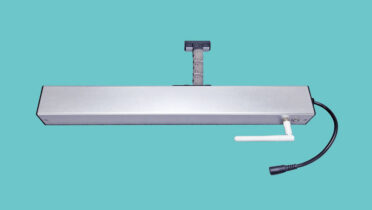

Single Chain Opener (Built-In Receiver)
Model: LK-LCR
- Built-in 433 receiving module, no external controller required
- Manual button and wireless remote control actuator Open/Stop/Close
- Compatible with Linkayl wireless rain sensor for automatic closing in case of rain
- 100-240VAC input adaptor, US/UK/Europe/Australia standards removable plug
- Push-pull force 400N, 10000 endurance tests
- Electronic over current protection with relax function
| Ordering Code | Working Voltage (VDC) | Max. Current (A) | Stroke (mm) | Push Force (N) | Speed (mm/s) | IP Class | Color | Dimension (mm) |
| LK-LCR300-S-C | 24 | 1.5 | 300 | 400 | 8 | 32 | Silver | 51*41*410 |
| LK-LCR400-S-C | 24 | 1.5 | 400 | 400 | 8 | 32 | Silver | 51*41*460 |
Features:
- Built-in 433 receiving module, no external controller required
- Manual button and wireless remote control actuator Open/Stop/Close
- Compatible with Linkayl wireless rain sensor for automatic closing in case of rain
- 100-240VAC input adaptor, US/UK/Europe/Australia standards removable plug
- Push-pull force 400N, 10000 endurance tests, overload protection
- High-grade alloy casing with sandblasted oxidative surface treatment
Trade Terms:
- Payment: Western Union or T/T
- MOQ: Sample or small quantity is acceptable
- OEM and ODM are available
- Discount is offered based on order quantity
Packaging & Shipping:
- Packaging detail: 1pcs/box or OEM box, 9 pcs/carton or customized
- Lead time: Sample will be 1-3 working days, regular order is 15-30 days
- Shipping: FEDEX, DHL, UPS for small quantity, big order by Sea or by Air
- Shipping port: Shenzhen
How do you place an order to us?
- Send us an inquiry about the details of the item you need (Model, Color, Quantity or special needs.)
- You will receive the Proforma Invoice showing the contents Including Company Information, Payment Details, Delivery Term.
- Sample of standard model is available for your test.
- Payment and bank slip.
- Production and delivery will be arranged after the payment confirmed.
- Delivery
