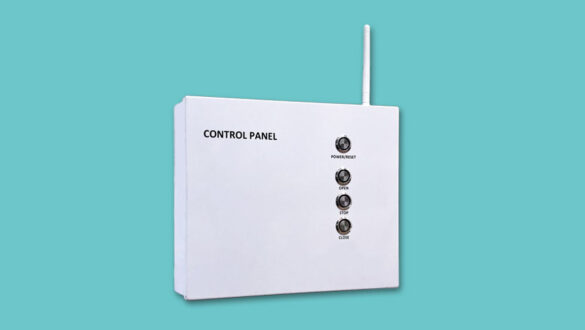

LK-CP611
Single channel controller used for window opener, curtain motor 24VDC motor control, built-in switching power supply 10/15/20/25A.
LinkAYL Catalogue
Window Opener Data Sheet
Controller Data Sheet
Input Device Data Sheet
LK-S122
2 way ynchronizer can synchronize 2 linear actuators or chain openers to protect the windows not to be damaged. Max current is 6A.
LK-GA502
Works with Linkayl window opener control system to open windows by detecting the leakage of natural gas, town gas and bottled gas.

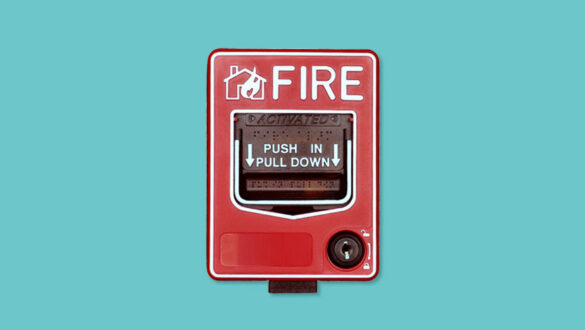

LK-SB116
The fire button is designed for fire alarm system to report fire or emergency condition by pulling down the plate.

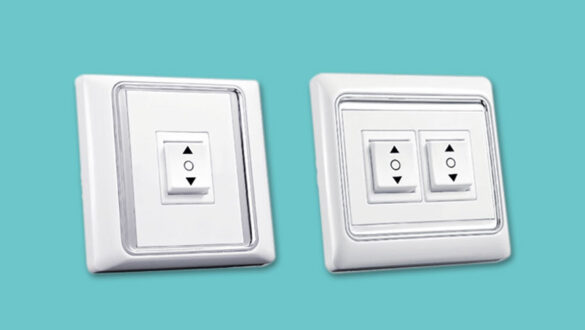

LK-MS542
Single/Double channel self-resetting/ self-locking mechanic switch to control AC electric window openers Open/Stop/Close manually.
LK-RT11
Remote transmitters work with Linkayl window opener control panel to convert window actuators remotely. Has 1/2/5/16 Channel versions.
LK-CP63
Works with inputs to control a group of window actuators to performance natural ventilation, smoke removal or heat removal.
LK-CP7
1/2/4 channel controller used for window opener, curtain motor and door closer 24VDC motor control with external switching power supply.
LK-UP211
1 channel controller used for window opener, curtain motor and door closer 24VDC motor control, built-in 24V/1.5A uninterruptible power supply.
LK-21UP2403
24VDC 3A UPS uninterruptible power supply, batteries output when AC power failure, battery is charged automatically.

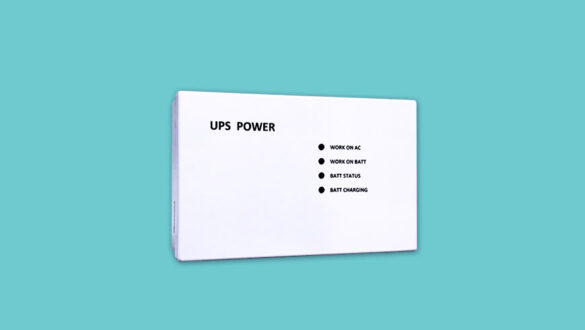

LK-21UP24015
24VDC/1.5A UPS uninterruptible power supply, batteries output when AC power failure, battery is charged automatically.

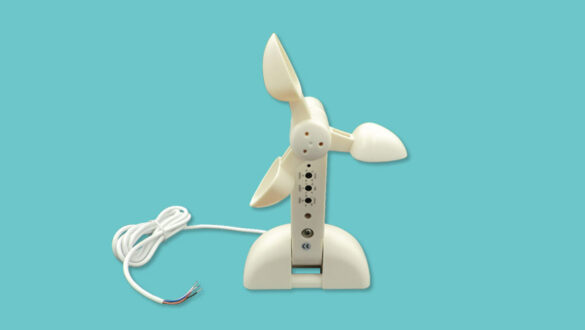

LK-WLR00
Works with Linkayl window opener control system to close windows automatically by outputting the dry contact signal when it is rainy or windy.

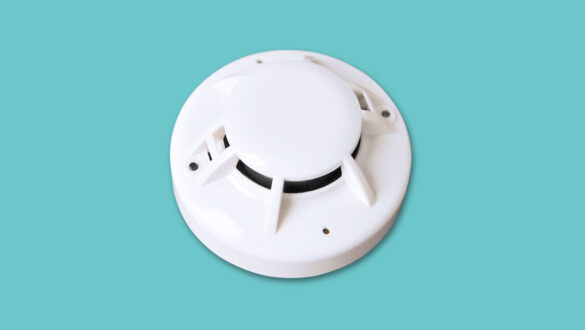

LK-YT142
Smoke sensor works as a part of window opening control system to open windows automatically when it is in emergency condition or on fire.
LK-S11X
LK-S11X actuator Synchronizer can synchronize 3 or 4 units electric window openers to protect the windows not to be damaged.

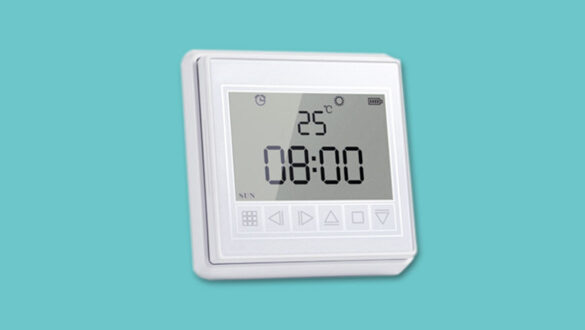

LK-AC128-01
Works with Linkayl electric window opener control systems to open/close windows remotely at preset time.

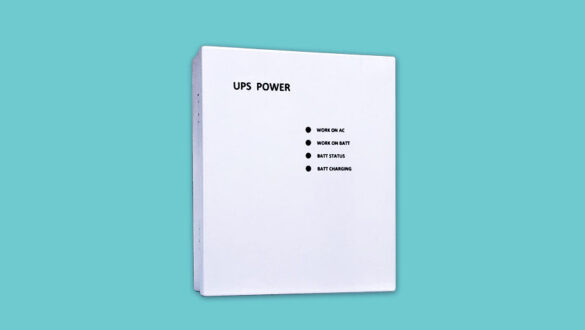

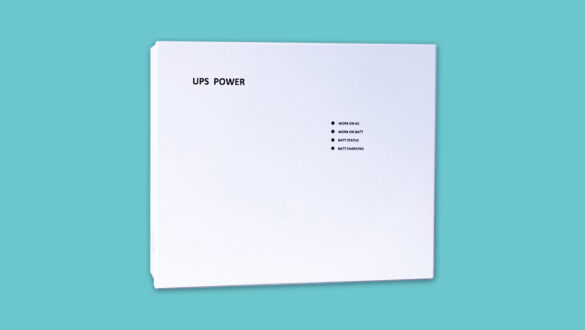

LK-21UP2406
24VDC/6A UPS uninterruptible power supply, batteries output when AC power failure, battery is charged automatically.

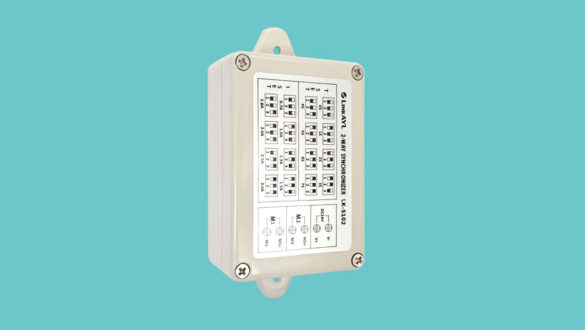

LK-S102
24VDC 2A actuator synchronizer can synchronize automatic linear actuators or electric chain window openers to protect the windows not to be damaged.
LK-CP62
1/2/5 channel controller used for window opener, curtain motor and door closer 24VDC motor control, built-in 30A/40A switching power supply.
LK-TH001
Temperature and humidity sensor works with LinkAYL control panels to open/close windows by reaching the values of upper limit or lower limit.

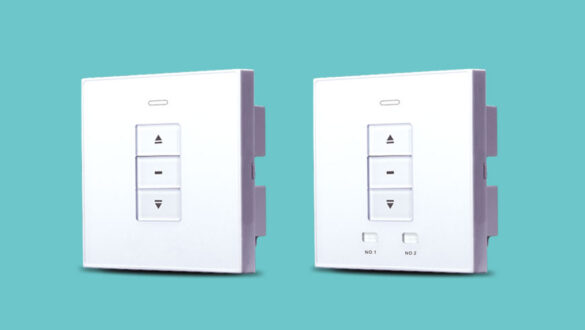

LK-MR53
Drives electric window opener to open or close the window by manual control or remote control, standard 86 type easy to install.

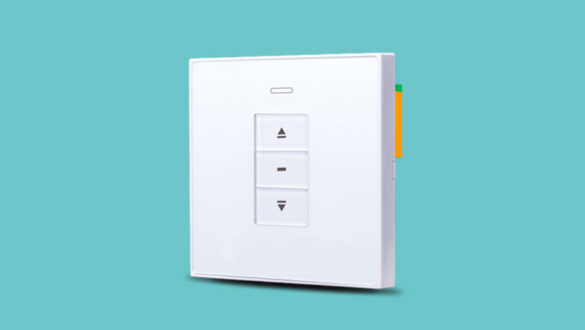

LK-MS541
Dry contact switch works with Linkayl window opener control panels to control window Open/Stop/Close manually.

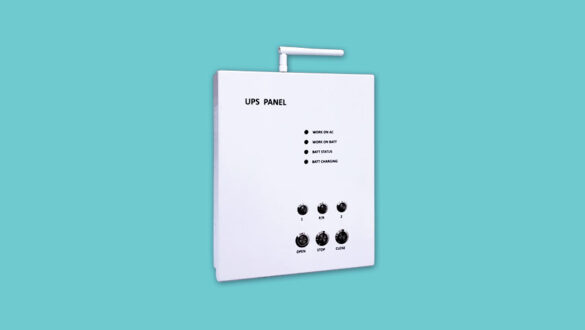

LK-UP22
1/2 channel controller used for window opener, curtain motor and door closer 24VDC motor control, built-in 24V/3A uninterruptible power supply.
LK-S112
2 way ynchronizer can synchronize 2 linear actuators or chain openers to protect the windows not to be damaged. Max current is 3A.

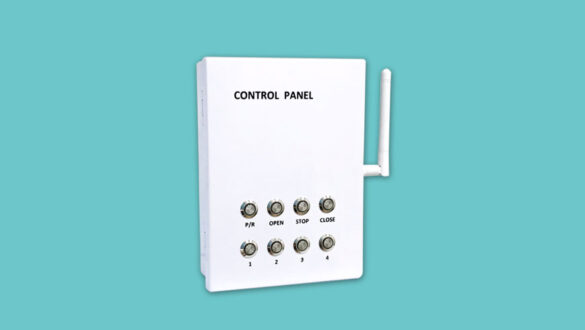

LK-CP64
1/2/4 channel controler used for electric window openers, curtain motor and door closer 24VDC motor control with 24VDC/6A power supply.

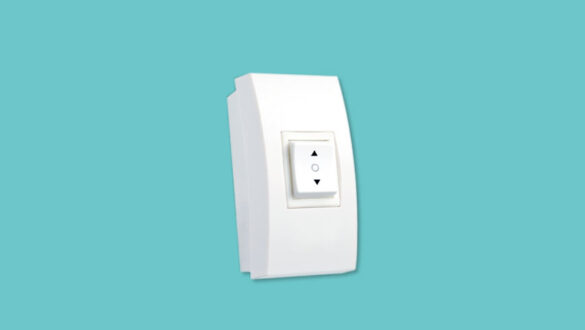

LK-MS543
Single channel self-resetting/ self-locking mechanic switch to control AC electric window openers Open/Stop/Close manually.
LK-CP8
1/2/4 channel controller used for window opener, curtain motor and door closer 24VDC motor control, built-in switching power supply.
LK-MR52
Wi-Fi APP for IOS and Android control your windows anywhere in the world. Touch screen manual control, 433MHz RF remote control, controlled by rain sensor.

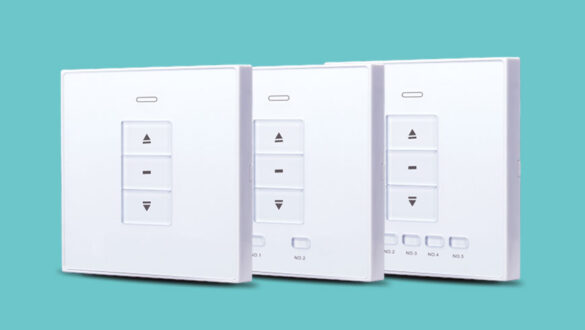

LK-WT21
Wall transmitters are paired with Linkayl window opener control panel to convert actuators remotely. Wireless signal can pass through walls and doors.

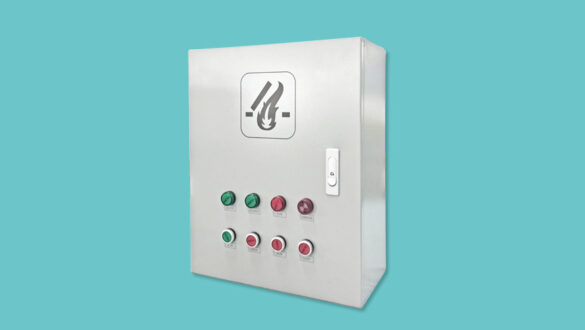

LK-FP3
Fire control panel works with rain sensor, smoke sensor or other inputs to control window actuators to realize daily ventilation or smoke removal.

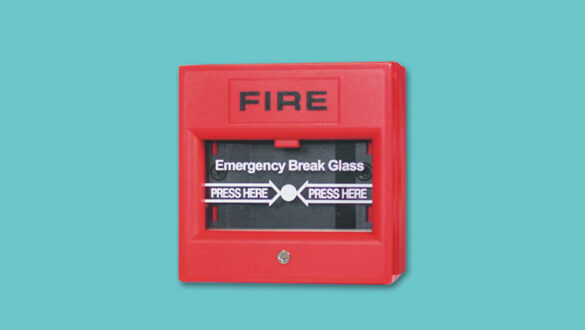

LK-SB106
The fire button is designed for fire alarm system to report fire or emergency condition by pressing its breakable glass.

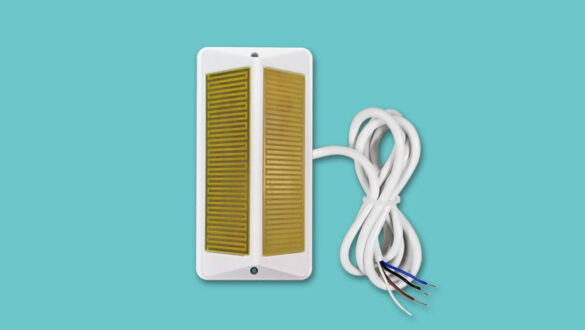

LK-RS00
Works with Linkayl window opener control system to close windows automatically by outputting the dry contact signal in case of rain.
LK-UP24
1/2/4 channel controller used for window opener, curtain motor and door closer 24VDC motor control, built-in 24V/6A uninterruptible power supply.

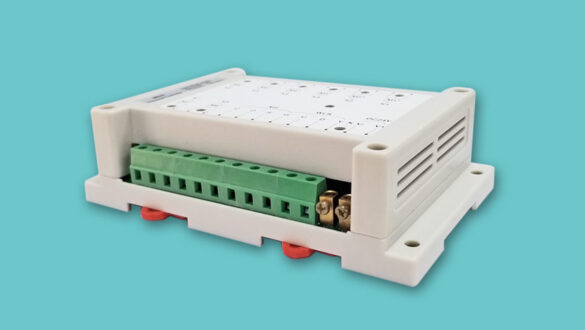

LK-MR551
Controls 8 window openers separately or at the same time by manual switch or remote working with external switching power supply.
